產品說明1
※本產品原廠代理從國外進口，有些交期較長，下訂前請詢問！
舊款：Arducam 130 Degree Ultra Wide Angle 1/2.3" M12 Lens with Lens Adapter for Raspberry Pi High Quality Camera ，130度超廣角 1 / 2.3“ M12鏡頭，帶用於Raspberry Pi 高質量相機的鏡頭適配器
新款： Arducam 140 Degree Ultra Wide Angle 1/2.3″ M12 Lens with Lens Adapter for Raspberry Pi High Quality Camera
Arducam 140度超廣角1 / 2.3“ M12鏡頭，帶用於Raspberry Pi高質量相機的鏡頭適配器

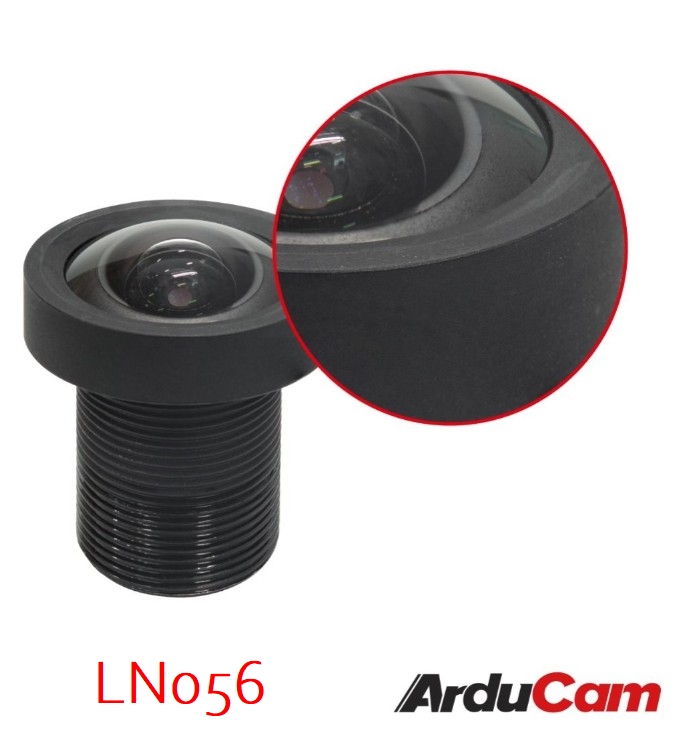

型號：LN056，Arducam 1/2.3寸 M12鏡頭 焦距2.72mm 140度超廣角－ M23272M14，適用Pi HQ Camera
＊140° (H) on Raspberry Pi High Quality Camera,
＊80° (H) on Raspberry Pi V1/V2 Camera,
Package including
- 1pcs 1/2.3″ M12 140 degree ultra wide angle camera Lens
- 1pcs M12 lens adapter
Overview
In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of M12 mount lenses from long focus to fisheye for shooting on your Rpi HQ cameras. It’s now much easier for you to get the best lens you’ll need, and we will keep the lens list growing in the near future.
Why S-mount lenses are ideal for the RPi High Quality Camera:
為什麼S卡口鏡頭非常適合RPi高品質相機
- Lightweight: It’s tiny and takes less space than the official lenses.
- Cost-effective: You get more options with the equivalent amount of money.
- Project-centric: Different projects lead to different lens requirements, you need lenses with certain FoVs for specific needs as the notion of one-lens-fits-all gets impractical from time to time.
- OEM-ready: Unlike C/CS mount lenses, M12 lenses are highly customizable in regards to product designs.
Lens Specification
- Model No: M23272M14
- Optical Format: 1/2.3”
- Focal Length: 2.72mm 焦距
- Aperture: F2.5 光圈
- Field of View (FOV): 140° (H) 視角
- Mount: M12 mount
- Back Focal Length: 3.01mm 後焦距
- MOD: 0.2m
- Dimension: Φ17.20×17mm
- Weight: 8g
- IR Sensitivity: sensitive to visible light, with 650nm IR filter 帶紅外濾光片
相關文件
We have six M12 mount lenses available for the HQ camera, you can find the all-in-one kit here.
我們有六個可用於HQ相機的M12固定鏡頭，您可以在此處找到 多合一套件。(選KIT：LK006)
相關資訊
其他具有不同 FoV 的 Arducam S 卡口鏡頭
- 鏡頭 70 度： 20° HQ 相機鏡頭（LN036）、 50° HQ 相機鏡頭（LN024）、 70° HQ 相機鏡頭（LN023）。
- 廣角和魚眼鏡頭： 90° HQ 相機鏡頭（LN033）、 新140° HQ 相機鏡頭（LN056）、 180° HQ 相機鏡頭（LN031）。
