產品說明0
※本產品原廠代理從國外進口，有些交期較長，下訂前請詢問！
B0499，Arducam 1.58MP IMX296 Color Global Shutter Camera 相機模組
Arducam 1.58MP IMX296 彩色全域快門 USB 3.0 相機模組
Arducam 1.58MP IMX296 Color Global Shutter USB 3.0 Camera Module

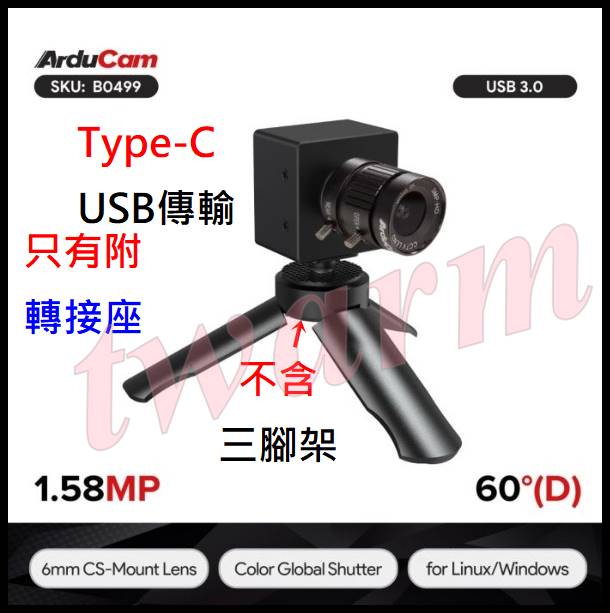

ＰＳ．不包含三腳架，請查看UB0224和UB0216另行購買。
【Package Including】清單：

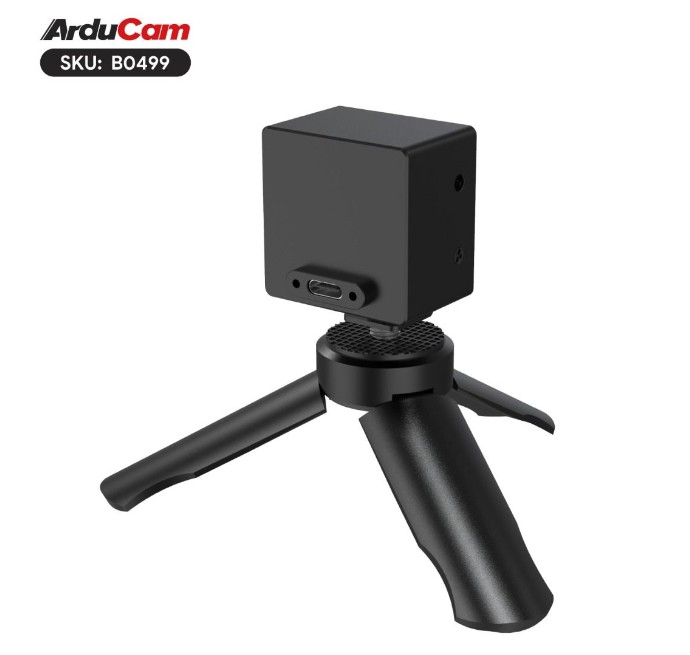

- 1 x IMX296 USB3 Camera with Back Cover and Tripod Adapter

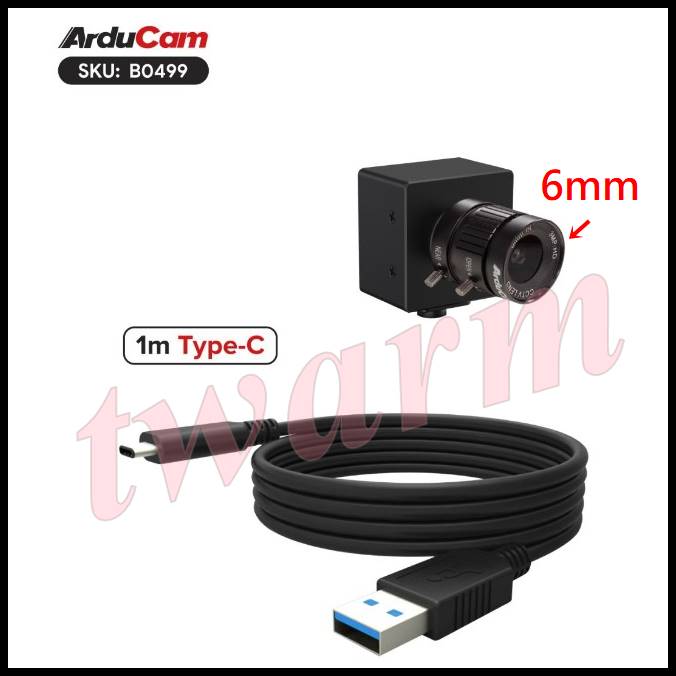

- 1 x 1m USB A to Type-C Cable／ 1米USB線
［overview］：
- Plug and play
- Based on 1.58MP IMX296, maximum still resolution of 1456*1088.
- Proprietary on-board ISP advances image enhancement.
- Color Global Shutter with 90fps High-speed USB3 Connectivity.

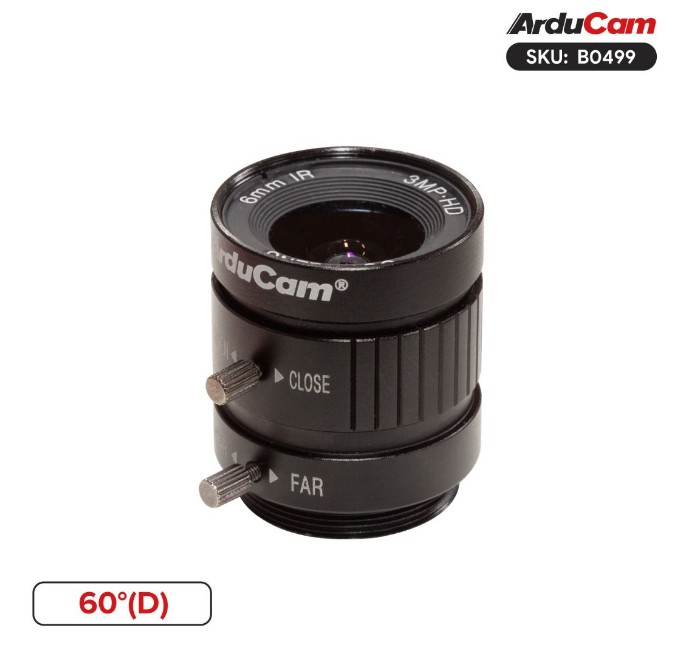

- 6mm CS lens for Precision focus.
Arducam's USB 3.0 camera series presents the IMX296 color global shutter model. With a 1.58MP CMOS sensor and a maximum still resolution of 1456x1088, this camera produces uncompressed, high-quality images in YUYV format.
The on-board ISP optimizes image quality, while the global shutter, USB 3.0 connectivity, and a rapid 44fps frame rate ensure seamless video. Equipped with a 6mm CS lens boasting a 60° diagonal field of view, it delivers accurate and detailed images for diverse applications.
Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows and Linux OSs, no additional drivers are needed, simplifying the setup process. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.
【Applications】應用：
- Machine Vision
- Video Surveillance
- 3D Scanning and Metrology
- Live Streaming
- Video Conferencing
【Features】特徵：
- Outstanding Imaging: Arducam's IMX296 USB3 camera boasts a 1.58MP color global shutter sensor for exceptional clarity at 1456x1088 resolution.
- High-Speed USB 3.0 Connectivity: Enjoy up to 44fps frame rate flexibility and global shutter functionality, ensuring artifact-free high-speed motion capture.
- Equipped with a 6mm CS mount lens, this camera allows manual adjustment for sharp, clear images tailored to your needs.
- Advanced Image Enhancement: On-board ISP with proprietary tech ensures top-tier image quality through de-Bayer, gamma, BLC, AE, AWB, CCM, and RGB2YUV processes.
- Plug and Play: Seamless compatibility with Windows and Linux, plug-and-play functionality eliminates the need for additional drivers.
【Specifications】：
| Image Sensor |
| SENSOR | IMX296 |
| Still Resolution | 1.58 Megapixels |
| Color Filter Type | Color |
| Shutter Type | Global Shutter |
| Optical Size | 1/2.9" |
| Output Format | YUY2 |
| Pixel Size | 3.45μm × 3.45μm |
| Sensor Active Area | 1456(H) × 1088(V) |
| Frame Rate (USB 3.0) | 1456×1088@44fps |
| Frame Rate (USB 2.0) | 1456×1088@10fps |
| Lens |
| Focus Type | Manual Focus |
| FOV | 60°(D)×50°(H)×38°(V) |
| Lens Mount | CS Mount |
| F.NO | F1.2 |
| E.F.L | 6mm |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| Default Focus Range | 3m-∞ |
| USB Interface |
| Interface | USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts |

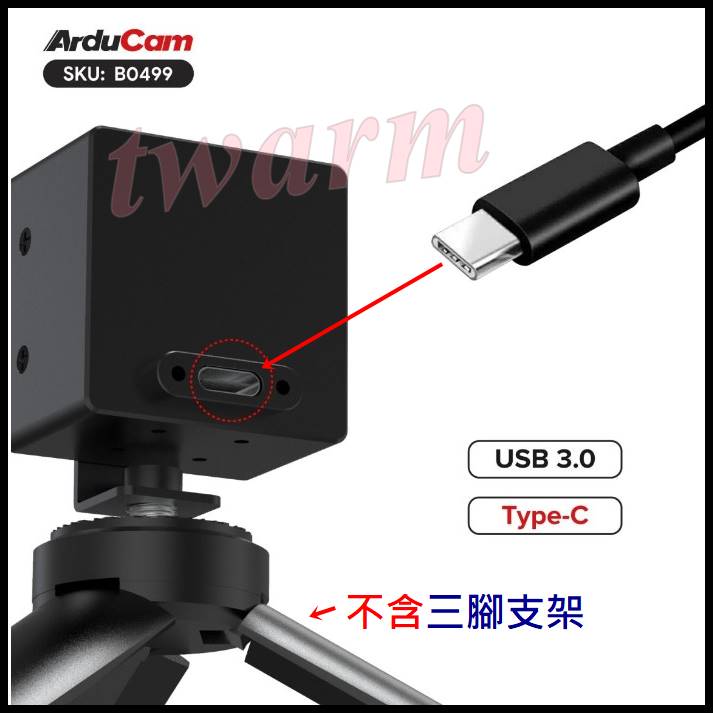

| Connector | Type-C reversible interface connector |
| UVC Compliant | No additional drivers required |
| Electrical and Mechanical |
| Operating Voltage | 5 V +/- 5% |
| Operating Temp. | 32°F-158°F (0°C to 70°C) |
| Power Requirements | Max: 1.89W , Min: 1.62W |
| Camera Board Size | 34×34 mm |
| Functionality and Compatibility |

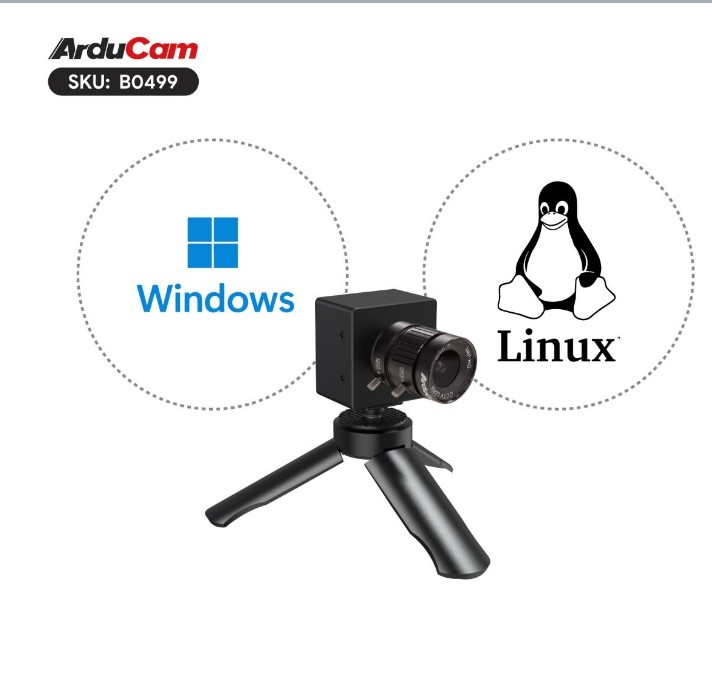

| Supported OS | Windows, Linux |
| Recommend Sample Application | PotPlayer for Windows, qv4l2 for Linux |
| UVC Controls | Brightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Exposure (Manual/Auto) |
相關資訊
【可加購】：可伸縮 三腳架
https://twarm.com/commerce/product_info.php?products_id=13915

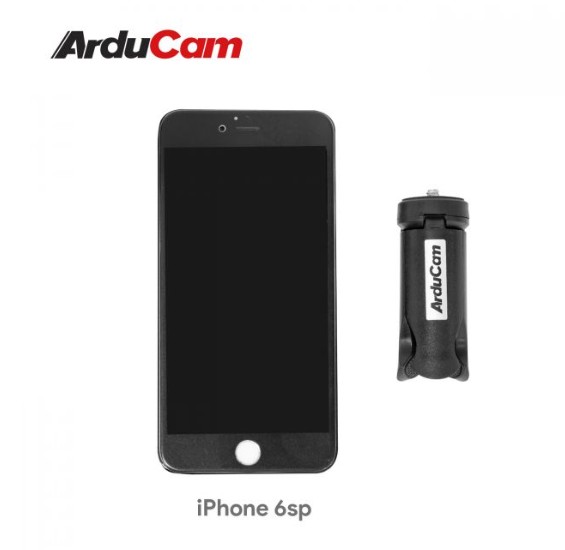

【可加購】：原廠三腳架 UB0216，Arducam Tripod 三腳架
https://twarm.com/commerce/product_info.php?products_id=18957
