樂鑫 ESP32-C6-DevKitC-1 開發板，ESP32-C6系列 Wi-Fi 6、ESP32-C6-WROOM-1-N8芯片

＊ESP32-C6-DevKitC-1-N4 ESP32-C6 開發板核心板，RISC-V WIFI物聯網開發板

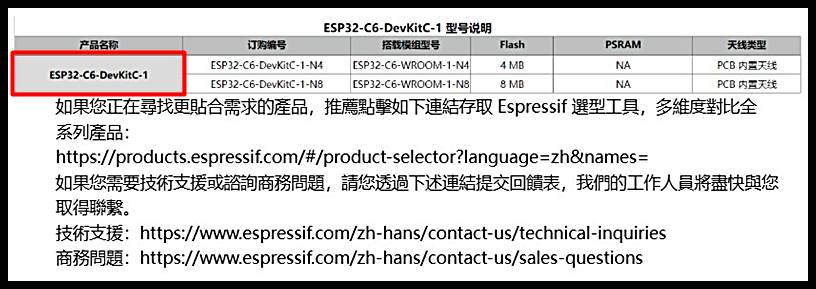

＊樂鑫原廠 ESP32-C6-DevKitC-1-N8 開發板（8MB SPI Flash）Zigbee Thread 開發板

【ESP32-C6-DevKitM-1】：

　　This user guide will help you get started with ESP32-C6-DevKitC-1 and will also provide more in-depth information.

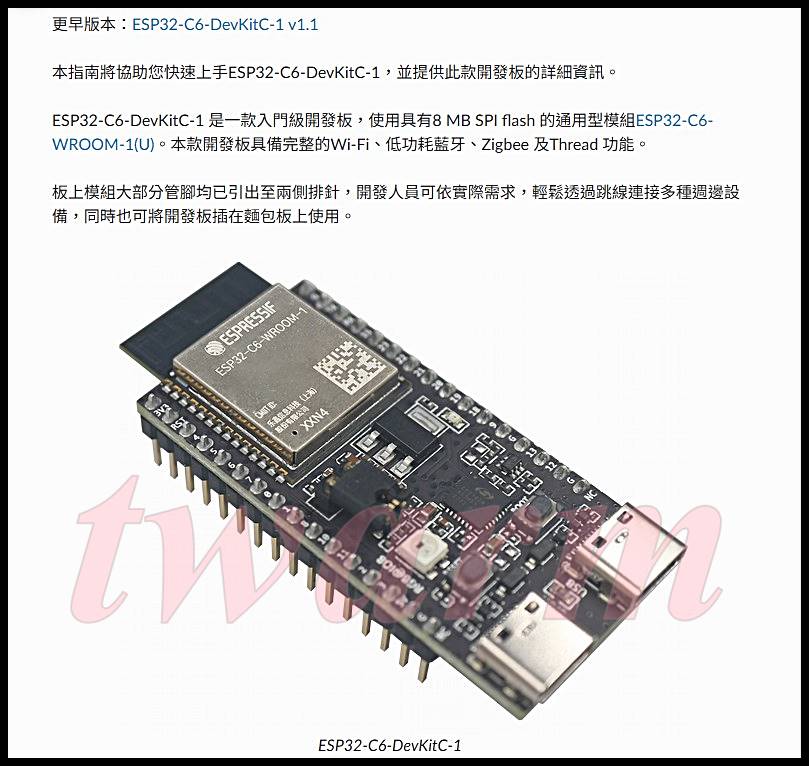

　　ESP32-C6-DevKitC-1 is an entry-level development board based on ESP32-C6-WROOM-1(U), a general-purpose module with a 8 MB SPI flash. This board integrates complete Wi-Fi, Bluetooth LE, Zigbee, and Thread functions.

　　Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C6-DevKitC-1 on a breadboard.

【The document consists of the following major sections】：

• 〔Getting Started〕：Overview of ESP32-C6-DevKitC-1 and hardware/software setup instructions to get started.

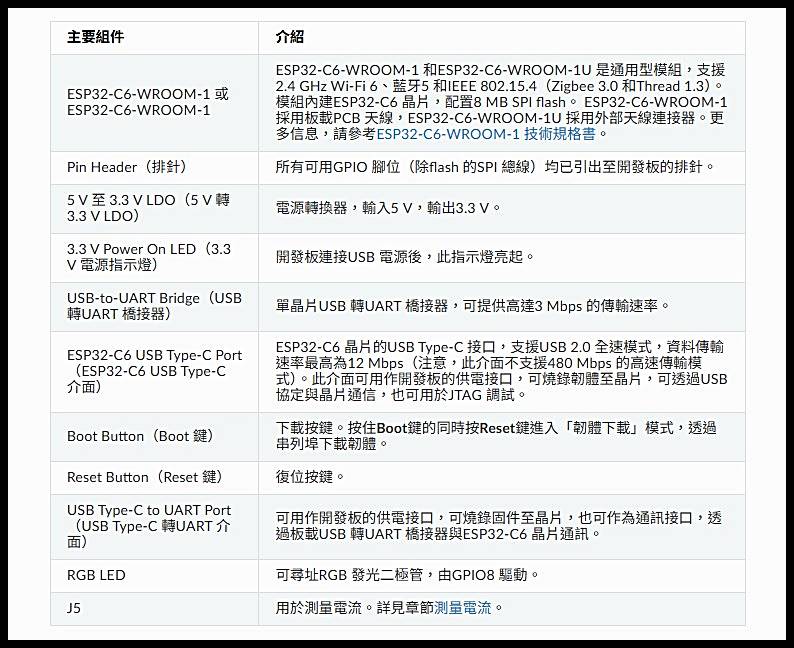

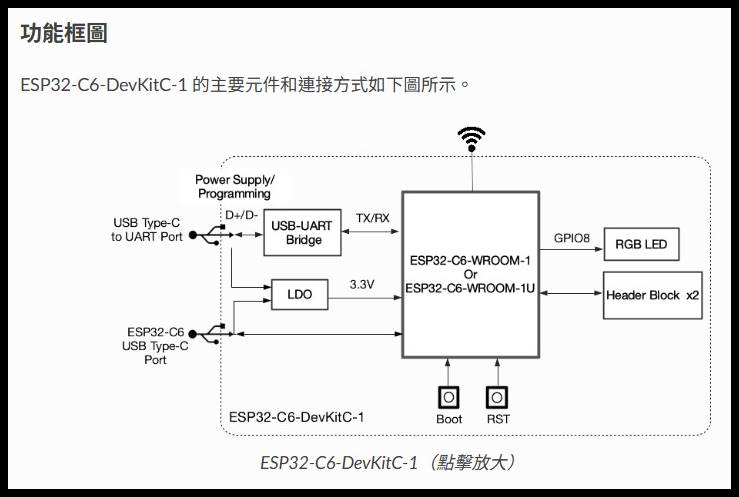

• 〔Hardware Reference 〕：More detailed information about the ESP32-C6-DevKitC-1’s hardware.
• 〔Hardware Revision Details〕： Revision history, known issues, and links to user guides for previous versions (if any) of ESP32-C6-DevKitC-1.
• 〔Related Documents〕： Links to related documentation.

【Getting Started】：

　　This section provides a brief introduction of ESP32-C6-DevKitC-1, instructions on how to do the initial hardware setup and how to flash firmware onto it.

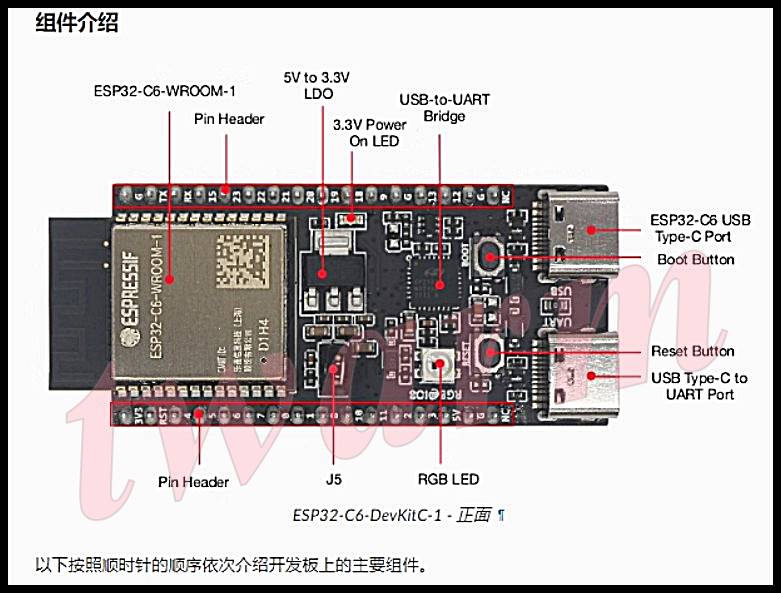

【Pin Layout】引腳：
