產品說明0
※本產品原廠代理從國外進口，有些交期較長，下訂前請詢問！

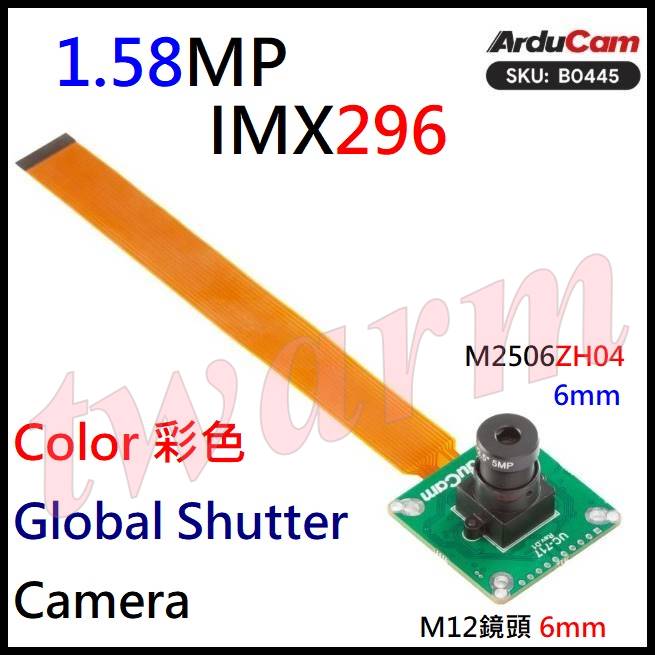

B0445，Arducam 1.58MP IMX296 Color Global Shutter Camera 相機模組，M12 6mm焦距鏡頭（M2506ZH04）適用樹莓派
Arducam 1.58MP IMX296 彩色全域快門 相機模組，配6mm鏡頭
1.58MP IMX296 Color Global Shutter Camera Module with M12 Lens for Raspberry Pi
【Package Including】清單：
- 1 x Arducam 1.58MP IMX296 Global Shutter camera module with M12 Lens
- 1 x 150mm 15pin-22pin FPC Cable / 15P 轉 22P 線
- 1 x 150mm 22pin-22pin FPC Cable / 22P 轉 22P 線
［overview］：
- Global Shutter： Based on 1.58MP IMX296 Color Global Shutter image sensor.
- Replaceable M12 Lens： Equipped with a 45°(HFOV) M12 Lens. With 13mm Lens Holder.
- Manual Focus： Especially suitable for special photographic conditions such as low light and macro, etc.

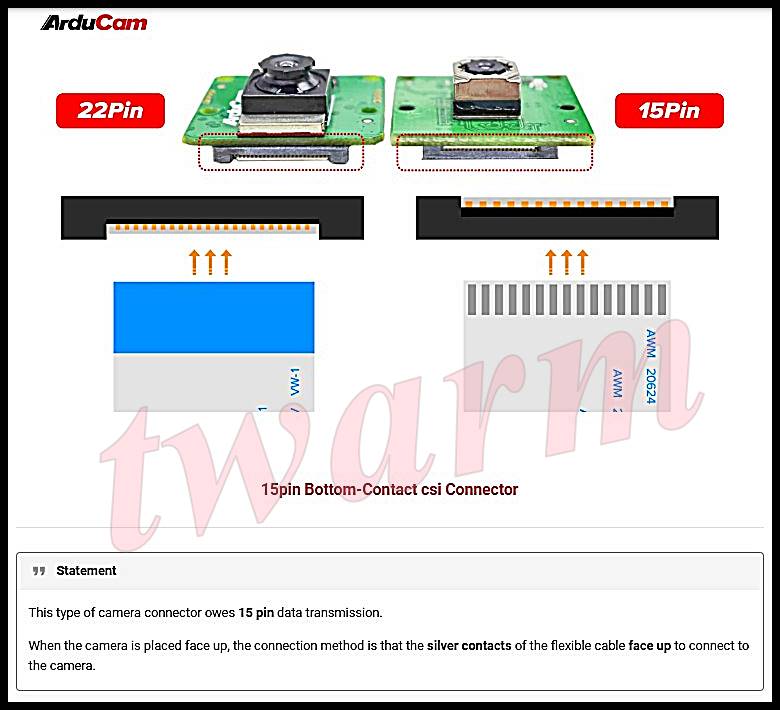

- Supports Raspberry Pi 3, 4 A/B, equipped with 15-22pin and 22-22pin FPC flexible cables.
- Cost-effective： Second-to-none choice for given image and cost. High Performance with low consumption.

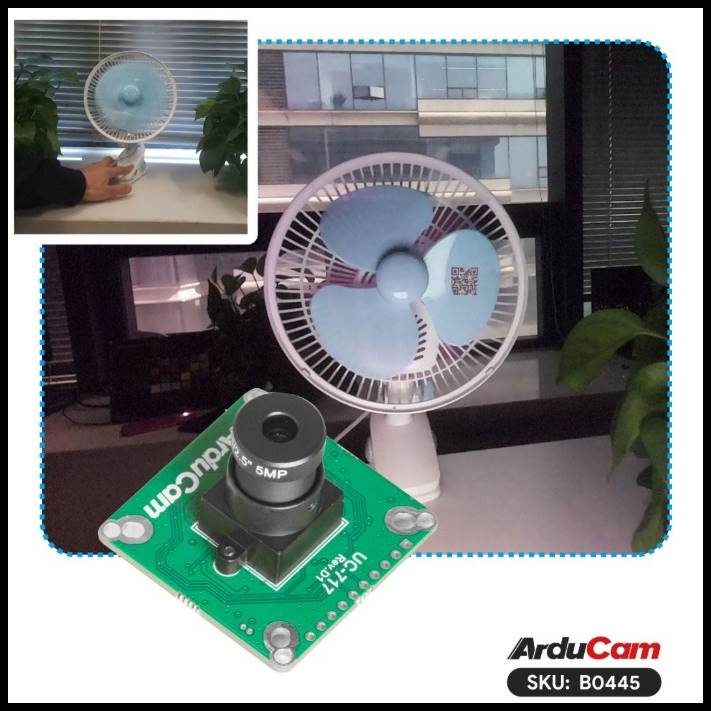

This camera is based on SONY IMX296 Color Global Shutter image sensor. Global shutter technology allows you to reduce or eliminate unwanted image artifacts, which occur with traditional rolling shutter image sensors as a result of motion during image capture.
The camera is equipped with a 45°(HFOV) M12 Lens. A manual focus M12 camera allows you to apply it in situations such as macro photographs, low light conditions, etc. Meanwhile, this camera is native to Raspberry Pi and fully supported by libcamera and Picamera2 library.
Arducam is committed to creating diverse and convenient camera solutions for embedded camera users. We are not only engaged in the production and development of optical products, but also strive to provide complete solutions for Embedded cameras, Evaluation kit, Optical components, etc.
【Applications】應用：
- Home Security System
- Wildlife Photography
- Unattended surveillance
- Industrial Vision/Machine Vision
- Automation, AI Project, etc.
【Features】特徵：
- 〔Global Shutter〕：
Based on SONY IMX296 Color Global Shutter Image Sensor. The sensor is a CMOS active pixel type solid-state image sensor with a square pixel array and 1.58 M effective pixels. - 〔M12 Lensl〕鏡頭：
Armed with a 45° (HFOV) M12 Lens. Integrated with a M12 Lens Mount, of which Length Holder Height is 13mm. - 〔Manual Focus〕：
Manual Focus cameras are always more suitable in some special conditions. For example, in low-light and macro photography environments, manual focus can obtain a complete overall contrast of pictures, thereby improving image quality and focus accuracy. - 〔Raspberry Pi Native〕：

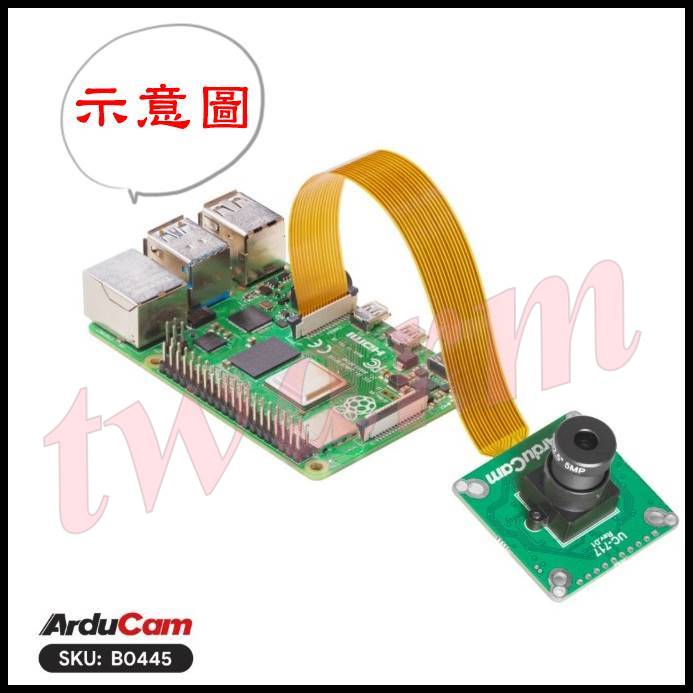

Native to Raspberry Pi. No additional camera driver is needed. - 〔Wide Compatibilit〕相容：

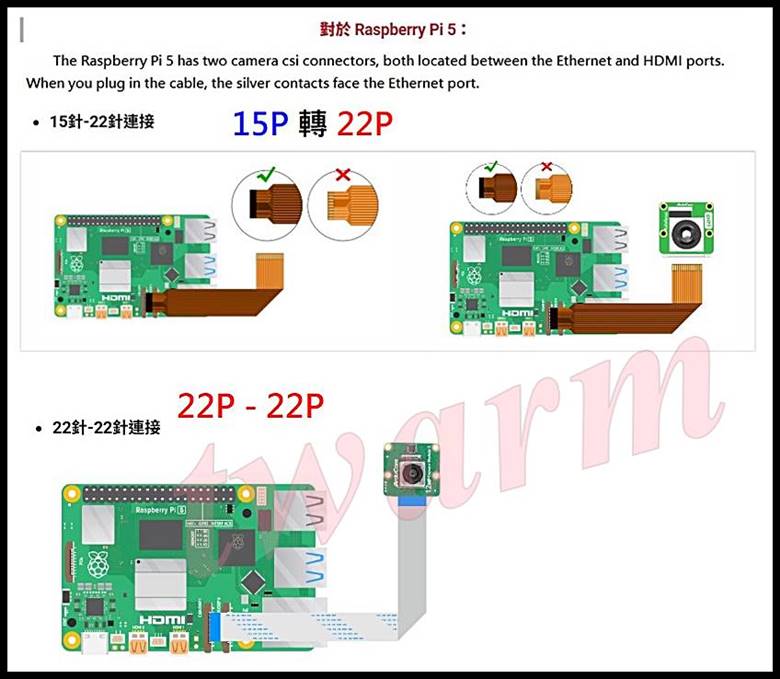

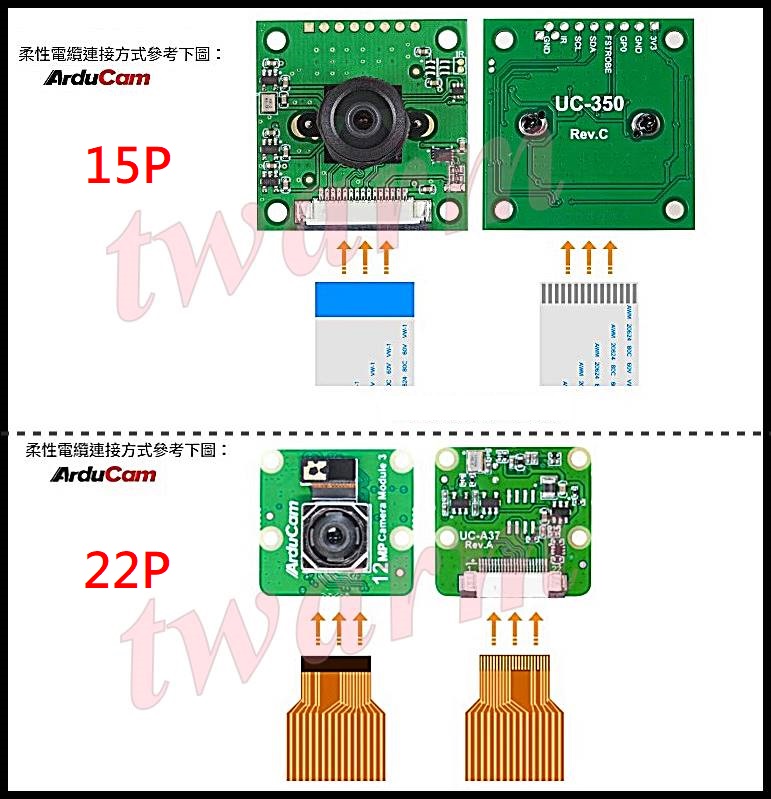

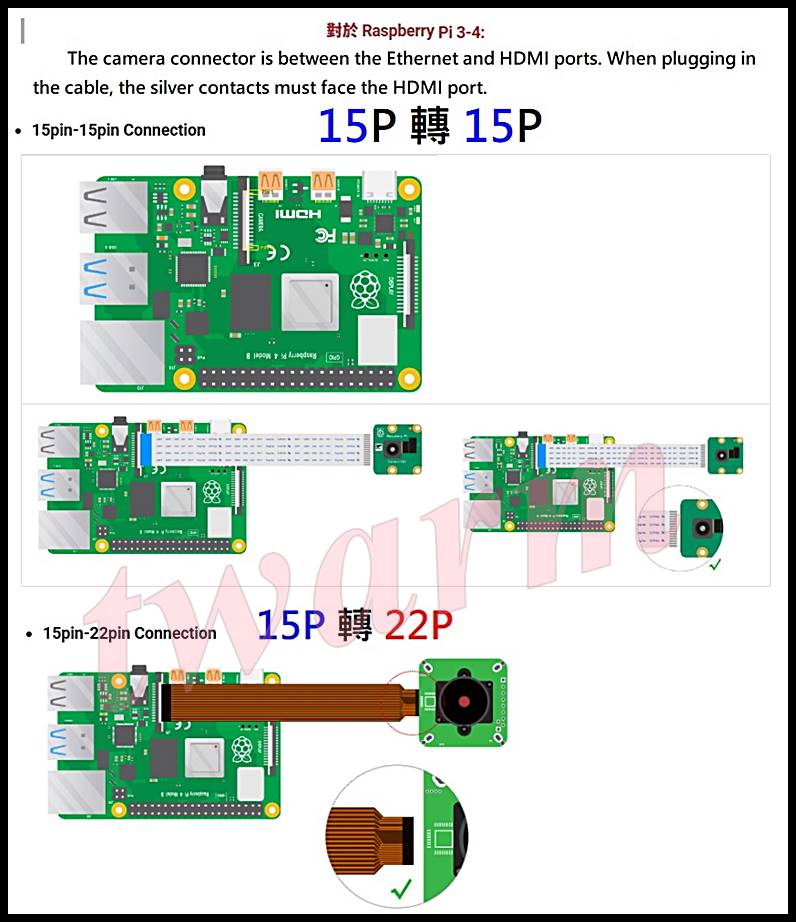

Compatible with Raspberry Pi 3, 4 A/B, equipped with 15-22pin and 22-22pin FPC flexible cables. Support used on Raspberry Pi Zero.

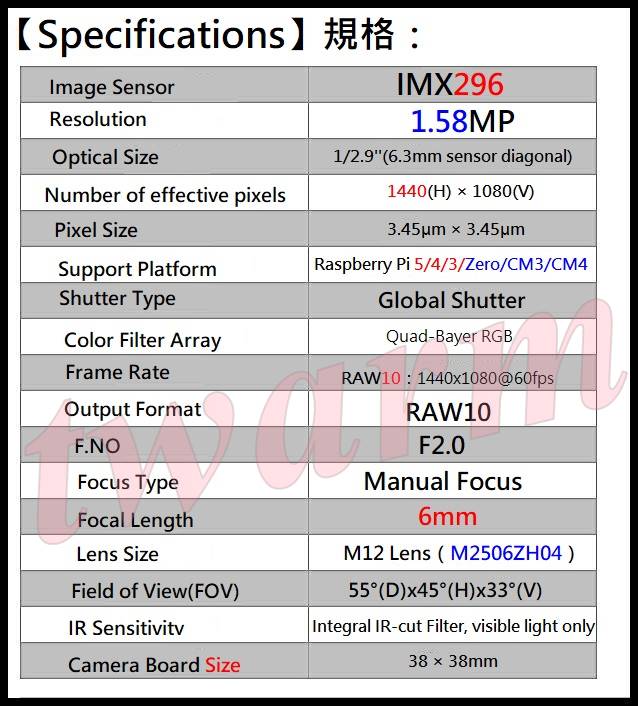

【Specifications】：
| Image Sensor | IMx296 |
| Resolution | 1.58MP |
| Optical Size | 1/2.9''(6.3mm sensor diagonal) |
| Number of effective pixels | 1440(H) × 1080(V) |
| Pixel Size | 3.45μm × 3.45μm |
| Support Platform | Raspberry Pi 5/4/3/Zero/CM3/CM4 |
| Shutter Type | Global Shutter |
| Color Filter Array | Quad-Bayer RGB |
| Frame Rate | RAW10:1440x1080@60fps |
| Output Format | RAW10 |
| F.NO | F2.0 |
| Focus Type | Manual Focus |
| Focal Length | 6mm |
| Lens Size | M12 Lens(M2506ZH04) |
| Field of View(FOV) | 55°(D)x45°(H)x33°(V) |
| IR Sensitivity | Integral IR-cut Filter, visible light only |
| Camera Board Size | 38 × 38mm |
