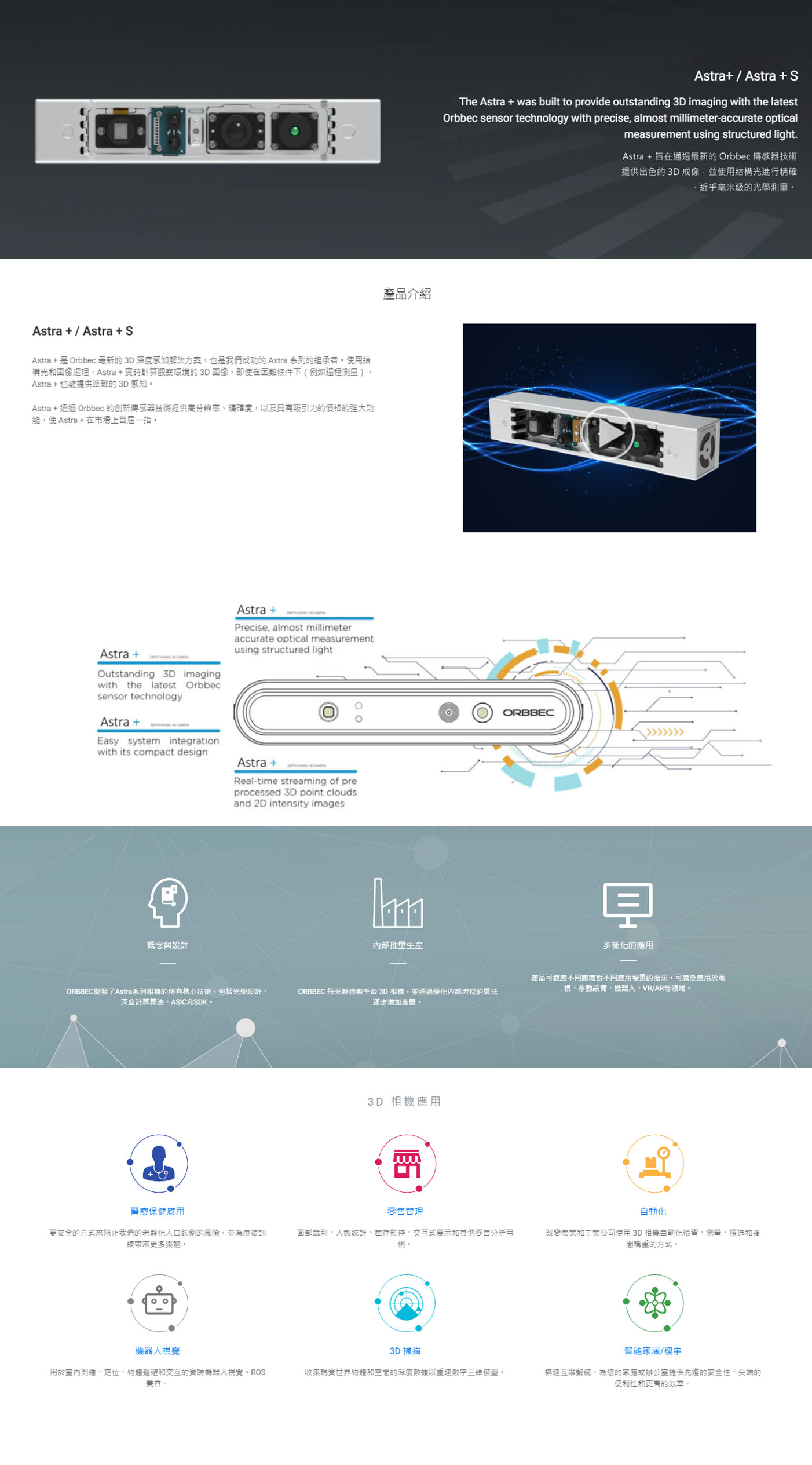

【ASTRA +】(整機，帶外殼)
The Astra + Developer kit is a cutting-edge spatial computing developer kit with sophisticated computer vision and advanced AI sensors. Using structured light and image processing, Astra + computes a 3D image of the observed environment in real-time. Astra + provides accurate 3D perception even under difficult conditions.
Using Astra + Developer Kit provides a base for manufacturing, retail, healthcare, and businesses to leverage spatial data to increase performance, improve outcomes, and revolutionize the customer experience. The Astra + offers high resolution, precision via Orbbec’s innovative sensor technology, plus powerful features at an attractive price, making the Astra + premier in the market.
If you’re still looking for the Astra+ Module (non-housing version) it is still available by request.
Astra + Developer 套件是一款尖端的空間計算開發套件，具有精密的計算機視覺和先進的 AI 傳感器。 使用結構光和圖像處理，Astra + 實時計算觀察環境的 3D 圖像。 即使在困難的條件下，Astra + 也能提供準確的 3D 感知。
使用 Astra + Developer Kit 為製造、零售、醫療保健和企業提供了一個基礎，以利用空間數據來提高性能、改善結果並徹底改變客戶體驗。 Astra + 通過 Orbbec 的創新傳感器技術提供高分辨率、精確度，以及以極具吸引力的價格提供的強大功能，使 Astra + 在市場上首屈一指。
Technical Specs
Product Name
|
Astra +
|
Range
|
0.6m – 8m
|
RGB FOV
|
H74°, V59°, D86.5°
|
DEPTH FOV
|
H55°, V45, D65°
|
RGB Image Resolution
|
Up to 1920 x 1080 @30fps
|
Depth Image Resolution
|
640 x 480 @30fps
|
Power Supply
|
USB Type C
|
Temperature
|
0 – 40°C
|
Data Transfer
|
USB 3.0 Type-C
|
Power Consumption
|
Average 804mA (Depth VGA @ 30fps, RGB 1080P @ 30fps)
|
Operating Systems
|
Android / Linux / Windows7/8/10
|
SDK
|
Orbbec SDK
|
Dimensions
|
178.32*35.32*38.10mm
|
Weight
|
252g
|
